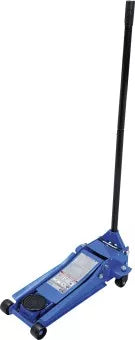

Floor Jack hydraulic extra flat 2.5 t

• steel construction
• easy to manoeuvre and transport
• low height clearance, especially suitable for lowered racing cars
• lifting height (rated load): 360 - 508 mm
• overall dimension (lowest position): 720 x 326 x 150 mm
• front wheel dimensions: Ø 60 x 43 mm
• rear wheel dimensions: Ø 60 x 30 mm
• lever dimensions: Ø 32 x 610 x 2.5 mm / Ø 32 x 615 x 1.5 mm
• lever total length: 1173 mm
• lifting pad diameter: 110 mm
• lifting beam thickness: 5 mm
• side plate thickness: 5 mm
• diameter of pump piston shaft: Ø 22 / Ø 15 mm
• diameter of working piston shaft: Ø 30 mm
