Glow Plug Removal and Thread Repair Set M8, M10 41 pcs.

• for assembly and disassembly of glow plugs and professional repair of glow plug threads
• thread cutter for regrinding glow plug threads M8 x 1 and M10 x 1
• tools for cleaning the filament bore in the cylinder head
• ratcheting tap holder

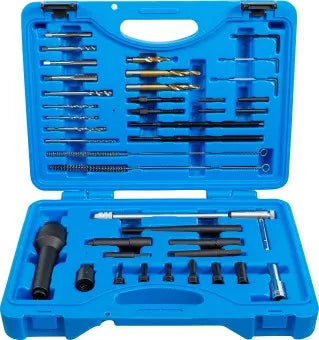

scope of delivery:

• 5 taps 1/4 "x 28UNF - 12 x 28UNF - M8 x 1.0 - M10 x 1.0 - M8 x 1.0
• 4 twist drills 2.6 - 3.4 - 3.4 - 4.4 mm
• 3 step drills for drilling out torn off glow plugs 4.4 x 7 - 5.4 x 7 - 5.5 x 9 mm
• 2 tie bolts
• 2 tension spindles
• 4 drill centering sleeves 2.6 - 3.7 mm
• 3 L-type wrenches, hexagon 2 - 2.5 - 3 mm
• 2 round steel brushes 5 x 300 - 7 x 300 mm
• 2 tap holders
• 1 centering device with ball bearing and pulling spindle
• 2 spindle nuts
• 2 twist drill holders
• 1 centering sleeve
• 1 pull-out sleeve
• 6 calibration inserts for glow plug electrodes, 6.3 mm (1/4 ") square drive, 2.6 - 3.2 - 3.5 - 4.5 - 6.5 - 8.25 mm
• 1 socket, square drive 10 mm (3/8 "), E-Star E10
