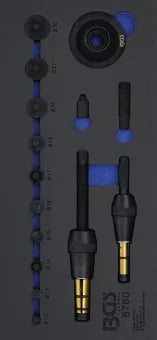

Tool Tray 1/3 Clutch Aligning Tool Set 17 pcs.

• universal application for vehicles with a hub diameter of Ø 15 - 26 mm
• for mounting single and double disc dry clutches
• for centering of clutch discs on cars with and without pilot bearings
• suitable for cars, SUV and small trucks with front, rear and 4-wheel drive

scope of delivery:

• 1 spindle guide: 55 mm long, M15 x 1.5, mandrel range: 15 mm to 19 mm
• 1 spindle guide: 100 mm long, M15 x 1.5, mandrel range: 19 mm to 26 mm
• 1 spindle guide: 150 mm long, M15 x 1.5, thread for small and large cone adaptor
• 1 extension 26 mm, for pilot bearing
• 1 small cone adaptor, spindle inner thread: M15 x 1.5, range: 19 - 28 mm, range: 21 - 30 mm, suitable for 55 mm spindle guide
• 1 large cone adaptor, spindle inner thread: M15 x 1.5, range: 26 - 31 mm, range: 28 - 35 mm, suitable for 100 mm spindle guide
• 1 dual disc adaptor height: 30 mm, cone side: 29 - 51 mm, plate side: 49 - 69 mm, for clutches without pilot bearing
• 10 pilot adaptor Ø 10 - 12 - 14 - 15 - 16 - 17 - 19 - 25 - 27 - 30 mm, for clutches with pilot bearing
