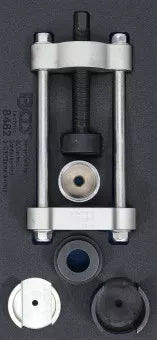

Supporting Joint Tool Set for BMW 3-series

• for installing / removing the supporting joints on BMW E36 series
• can also be used for hydro and plastic bushes

scope of delivery:

• disassembly counter holding sleeve, for resting in the opening of the base plate, outer diameter 49.0 mm, inner diameter 40.3 mm
• disassembly pressure sleeve, 68.2 mm outer diameter, 50.7 mm high, 2 opposite recesses 39.8 mm wide, 39.7 mm high
• mounting pressure sleeve, 62.3 mm outside diameter, 35.3 mm high, 2 opposite recesses 34.8 mm wide, 18.3 mm high
• sleeve, 47.5 mm high, 39.7 mm inside diameter, 49.1 mm outside diameter, 35.1 mm inside height, center thread M12 x 1.75 mm

Please contact if you have any questions via Whatsapp
