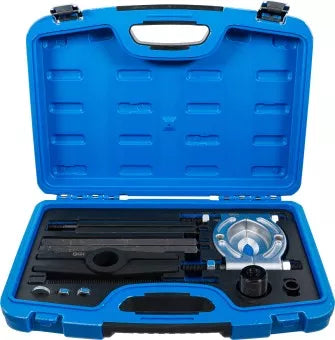

Splitting Knife Set for Ball Bearing Assemblies 6 pcs.

• total length of central bolt is 290 mm
• see BGS 7742 for separate splitting knife
• clamping width (A) min. / max. in mm: min. 13 mm / max. 70 mm
• puller bolt receiving thread (B): 1/2" x 13 UNC
• clamping bolt distance (C) in mm: 113 mm
• camping bolt thread (D): 1/2" x 13 UNC
• puller bolt distance (E) min. / max. in mm: min. 90 mm / max. 147 mm
• clamping bolt length (F): 166 mm
• splitting knife base (G) min. / max. in mm: min. 57 mm / max. 114 mm
