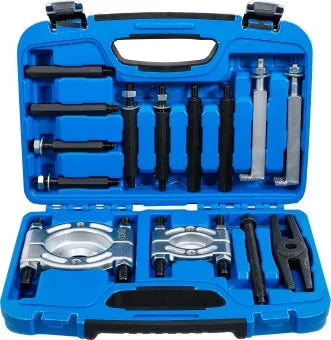

Splitting Knife Set for Ball Bearing Assemblies 14 pcs.

• incl. shifter
• for removing bearings, internal rings and other tightly and narrowly mounted parts

• clamping width (A) min. / max. in mm: min. 8 mm / max. 64 mm
• puller bolt receiving thread (B): 3/8" x 16 UNC
• clamping bolt distance (C) in mm: 63 mm
• camping bolt thread (D): 3/8" x 24 UNF
• puller bolt distance (E) min. / max. in mm: min. 50 mm / max. 106 mm
• clamping bolt length (F): 125 mm
• splitting knife base (G) min. / max. in mm: min. 26 mm / max. 82 mm

• clamping width (A) min. / max. in mm: min. 17 mm / max. 60 mm
• puller bolt receiving thread (B): 3/8" x 16 UNC
• clamping bolt distance (C) in mm: 90 mm
• camping bolt thread (D): 1/2" x 20 UNF
• puller bolt distance (E) min. / max. in mm: min. 84 mm / max. 127 mm
• clamping bolt length (F): 136 mm
• splitting knife base (G) min. / max. in mm: min. 52 mm / max. 95 mm
