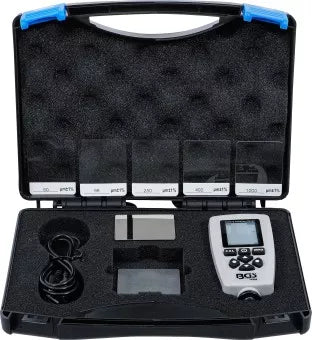

Coating Thickness Gauge for Iron and Non-Iron Metals

• for non-destructive measurements of the coating thickness
• suitable for non-magnetic coatings such as paint, enamel, chrome on ferrous metals and insulating coatings such as paint, anodized on non-ferrous metals
• LCD display with 128 x 128 dot matrix
• easy-to-understand menu navigation
• different measurement modes like single and continuous measurements
• probe modes like induction and eddy current
• group modes like direct (DIR), readings are lost on power off and general (GEN), readings are stored on power off
• 80 reading memory for each group
• zero and multi-point calibration (up to 4 points) for each group
• recall or delete individually stored readings and delete group readings
• statistics display for mean, minimum, maximum and deviation
• definable high or low limit alarm
• automatic shutdown function
• USB interface for data transfer
• low battery and error indicator

• accuracy (induction): +/- (2.5 % + 1 µm)
• accuracy (Eddy Current): +/- (2 % + 0.039 mils)
• resolution: 0 µm - 99.9 µm (0.1 µm) / 100 µm - 999 µm (1 µm) / >1000 µm (0.01 mm)
• minimum substrate thickness (induction): 0.2 mm
• minimum substrate thickness (eddy current): 0.05 mm
• minimum measuring surface: Ø 20 mm
• maximum measurement rate: 2 readings per second
• power supply: 2x 1.5 V battery AAA
• operating humidity: 20 - 90%
• units of measurement: µm, mm, mils
• dimensions: 110 x 53 x 24 mm
