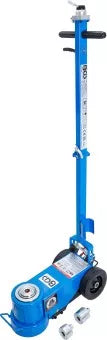

Jack pneumatic mobile 40 / 80 t

• short compact design, therefore easy to maneuver
• hydraulic system supported by compressed air for easy lifting
• large support surface for safe standing
• 2-steps
• suitable for commercial vehicles, tractors, agricultural machinery as well as larger construction machines and construction vehicles
• overload protection by overload pressure valve
• maximum lifting height is achieved by the two adapters included in delivery

• max. load bearing capacity: 80 t
• max. load bearing capacity: 40 t
• diameter plate: 127 mm
• ground clearance: 205 mm
• rear width: 280 mm
• width in front: 200 mm
• length lever: 1310 mm
• diameter handle: 50 x 30.5 mm
• height of adapters: 40, 60 mm
• cylinder diameter: 165 mm
• air requirement: 35 - 40 l/min
