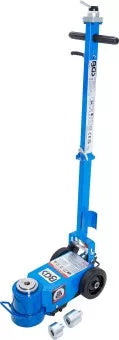

Jack pneumatic mobile 25 / 50 t

• short compact design, therefore easy to maneuver
• hydraulic system supported by compressed air for easy lifting
• large support surface for safe standing
• 2-steps
• with an initial height of 165 mm, it is possible to get under practically any axle of medium and small commercial vehicles
• overload protection by overload pressure valve
• maximum lifting height is achieved by the two adapters included in delivery

• max. load bearing capacity: 50 t
• max. load bearing capacity: 25 t
• diameter plate: 98 mm
• ground clearance: 165 mm
• rear width: 280 mm
• width in front: 160 mm
• length lever: 1160 mm
• diameter handle: 50 x 30.5 mm
• height of adapters: 40, 60 mm
• cylinder diameter: 136 mm
• air requirement: 35 - 40 l/min
