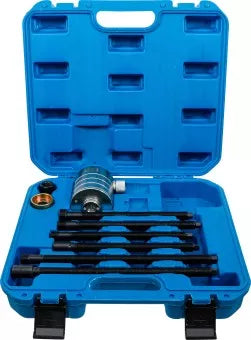

Hydraulic Cylinder Tool Set with Pulling Spindles for Diesel Injector Extractor 17 t

• for controlled disassembly of stuck injectors
• hydraulic cylinder with collar nut is placed together with the special pulling spindles on a puller bridge to pull out the injectors
• to be used in combination with injector extractor | for BMW (BGS 8782) and a hydraulic pump

• working pressure: max. 700 bar
• hydraulic piston diameter: 30 mm
• hydraulic piston stroke: 16 mm
• Hydraulic cylinder diameter: 78 mm

scope of delivery:

• 1 hydraulic cylinder internal thread M16 x 1.5 and coupling nut M21 x 1.25
• 1 puller spindle nut M16 x 1.5
• 1 distance washer
• 1 puller spindle M25 x 1.0 internal thread (240 mm)
• 1 puller spindle M14 x 1.5 external thread (240 mm)
• 1 puller spindle M17 x 1.0 internal thread (240 mm)
• 1 puller spindle M18 x 1.5 internal thread (250 mm)
• 1 puller spindle M17 x 1.0 internal thread (315 mm)
• 1 puller spindle M14 x 1.5 external thread (315 mm)
