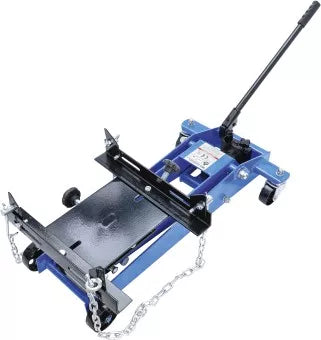

Transmission Jack hydraulic 500 kg

• for assembling and disassembling engines, gearboxes and rear axles
• heavy duty version
• for uncomplicated lifting by using a hydraulic hand pump
• stepless regulation and precise positioning
• extra deep working area
• loads can be lowered in a controlled manner
• with safety valve
• head plate angle and inclination adjustable by using knurled screws
• including wide retaining rails (400 mm) with retaining chains (790 mm) for securing the transmission / gearbox
• the distance between the holding rails can be adjusted individually from 235 to 335 mm
• good maneuverability with 4 oil and acid-proof metal castors
• 2 fixed castors Ø 88.5 mm
• 2 swivel castors Ø 75 mm
• dimensions of head plate: 340 x 200 mm
• lifting capacity max.: 500 Kg
• lifting height min.: 160 mm
• lifting height max.: 650 mm
• net weight: 37 Kg
• material: steel
