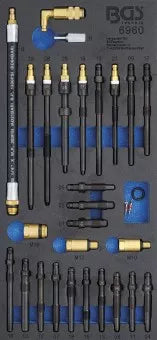

Tool Tray 1/3: Adaptor Set for Compression and Pressure Loss Tester 30 pcs.

• for pressure loss and compression measurements on diesel and gasoline engines
• includes adapters for glow plug and spark plug threads

suitable for the following models:

• Alfa Romeo, Audi, BMW, Chrysler, Citroën, Daewoo, Fiat, Ford, Honda, Hyundai, Isuzu, Jeep, Kia, Lada, Lancia, Land Rover, LDV, Mazda, Mercedes, Mitsubishi, Nissan, Opel, Peugeot, Range Rover, Renault, Rover, Saab, Seat, Skoda, Suzuki, Toyota, Vauxhall, Volvo, VW
• dial gauge for pressure loss and compression measurements are required
• the following sets or dial gauges are suitable:
  • Compression Tester Set for Petrol and Diesel engines (BGS 8400)
  • Compression and Pressure Loss Tester Set for Petrol and Diesel engines (BGS 8401)
  • Compression Tester Set for Diesel engines (BGS 8008)

scope of delivery:

• adapter for glow plug thread M10 x 1.25 | a=11 | b=8 mm
• adapter for glow plug thread M12 x 1.25 | a=12 | b=8 mm
• adapter for glow plug thread M12 x 1.25 | a=11 | b=47 mm
• adapter for glow plug thread M10 x 1.25 | a=22.5 b=23.5 mm
• adapter for glow plug thread M10 x 1.25 | a=18.5 | b=10.5 mm
• adapter for glow plug thread M10 x 1.25 | a=28 | b=16 mm
• adapter for glow plug thread M10 x 1.25 | a=23 | b=9.5 mm
• adapter for glow plug thread M10 x 1.25 | a=28 | b=55 | c=3 mm
• adapter for glow plug thread M10 x 1.25 | a=26 | b=59 mm
• adapter for glow plug thread M10 x 1.25 | a=29 | b=73 mm
• adapter for glow plug thread M10 x 1.25 | a=15 | b=27 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=23 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=31 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=14 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=59 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=47 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=42 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=64 | c=5 mm
• adapter for glow plug thread M10 x 1.0 | a=12 | b=57 | c=5 mm
• adapter for glow plug thread M8 x 1.0 | a=18 | b=52 mm
• clamp adaptor without thread
• adapter for spark plug thread M10 x 1.0
• adapter for spark plug thread M12 x 1.25
• adapter for spark plug thread M18 x 1.5
• test hose for spark plug adapter
• angle piece with quick coupler
• valve turning tool to change the adapter valves
• replacement O-ring and valves
