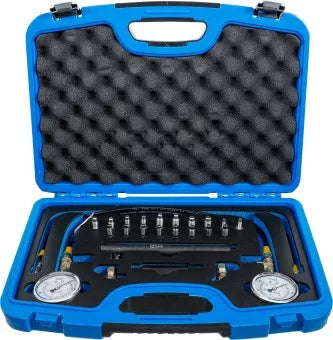

Brake Pressure Test Gauge Set

• to test the hydraulic brake pressure directly on the wheel brake cylinder, brake caliper, master cylinder or the hydraulic pump unit on Teves ABS systems with pressure accumulator
• allows to measure pressure differences of both brake circuits

scope of delivery:

• 2 pressure gauges with hose 0 - 255 kg/cm² (0 - 25 Mpa)
• 1 adaptor for Teves ABS with pressure accumulator
• 1 angle adaptor 90 degree
• 1 angle adaptor 45 degree
• 2 fittings 7/16" - 24 mm
• 2 fittings 1/4" - 28 mm
• 2 fittings 3/8" - 24 mm
• 2 fittings 5/16" - 24 mm
• 2 fittings 7/16" - 20 mm
• 2 fittings M7 x 1.0
• 2 fittings M8 x 1.25
• 2 fittings M10 x 1.5
• 2 fittings M10 x 1.0
• 1 thread adaptor
