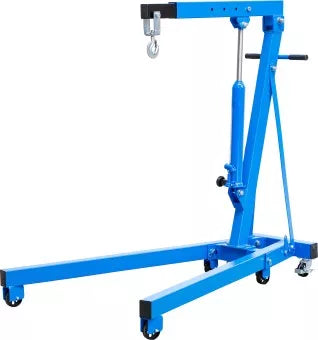

Engine Crane 1000 kg

• heavy duty crane for daily garage use
• suitable as a engine crane, for aligning components and machines or for lifting and holding loads in everyday workshop routine
• foldable for easy transport and space-saving storage
• with hand lever pump
• easy lifting and lowering by hydraulic cylinder
• easy to move in connection with 4 castors and 2 heavy duty swivel castors
• load carrier on the boom with stable chain and safety load hook
• telescopic crane boom with 4-way adjustment options

• adjustable lifting arm length in following 4 positions:
  • crane arm position 1: 900 mm, max. load 1000 kg
  • crane arm position 2: 990 mm, max. load 750 kg
  • crane arm position 3: 1080 mm, max. load 500 kg
  • crane arm position 4: 1170 mm, max. load 250 kg

• rated load: max. 1000 kg
• lifting range: 160 - 2040 mm
• crane arm length: max. 1170 mm
• stroke (max. rated load): 1860 mm
• height (max. rated load): 415 mm
• opening width of hook: 18 mm
• front wheel dimensions: Ø 89 x 30 mm
• middle wheel dimensions: Ø 76 x 30 mm
• rear wheel dimensions: Ø 76 x 30 mm
• over all dimension (lowest position): 1515 x 1050 x 1445 mm
